SharePoint 2016 IT Preview: Installation and Configuration Steps

SharePoint 2016 IT Preview is out and can be downloaded at http://www.microsoft.com/en-us/download/details.aspx?id=48712

Installation is done on the following platform.

Operating System               Windows Server 2012 R2
Database                              MS SQL Server 2014
Processor                             64bit 4 cores
Memory                               16 GB

For more detail visit link http://blogs.technet.com/b/wbaer/archive/2015/05/12/what-s-new-in-sharepoint-server-2016-installation-and-deployment.aspx

For Pre-requisites Installation visit my previous post
http://www.muhammadshoaib.net/2015/09/sharepoint-2016-it-preview-installation.html

After installing the pre-requisites as described on the above link, start the setup for installing SharePoint 2016 IT Preview


In the installation steps, the first screen will prompt for Product Key, for IT Preview installation, use the following key.

NQTMW-K63MQ-39G6H-B2CH9-FRDWJ



after accepting the license terms, next screen will ask for file location of SharePoint 2016 files and Search index files.



Click on Install Now button on the above screen, installation will continue for some minutes.

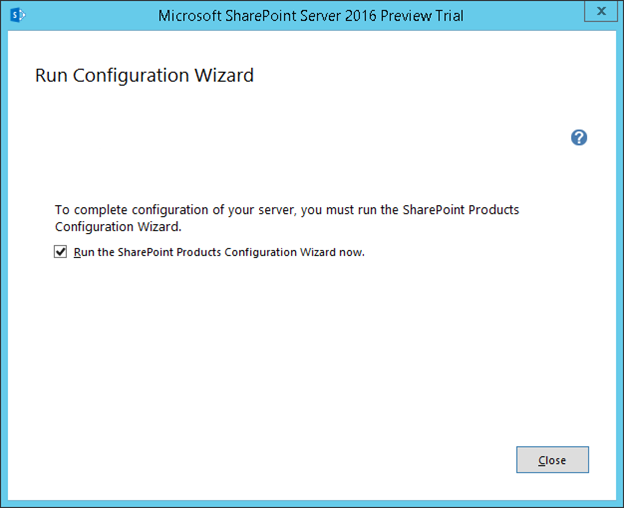

After the installation is complete, setup will ask for Configuration wizard to start.


Configuration Wizard will start and after the welcome screen, Wizard will display the list of service that will be stopped or restarted during the configuration.



on the next screen, select from the option to connect to an existing farm or to create new server farm.


Database details will follow next. Wizard will ask for DB Server, DB Username and Password. Remember while providing the User that it should have a minimum of DB Creator rights to complete the configuration.

For Security purpose, wizard setup will as for the Passphrase on the next screen.



Next screen will display the options for server roles. SharePoint 2016 has six server roles defined.

  • Front-end
  • Application
  • Distributed Cache
  • Search
  • Custom
  • Single-Server Farm

  • For single server farm select the last option. If farm is mean to be extended then select the appropriate option from the rest of five like Application of Front-End.


     On next screen an option is given for the Central Administration port and authentication provider.

    Click Next and Configuration wizard will display all the settings gathered in the previous steps for an overview.

    Process will start to configure SharePoint 2016 IT Preview. as Soon as configuration will complete, and you click Finish button on the last screen, it will open the Central Administration in browser for settings related to Service Applications.

    Once finished settings Central Administration Home will be displayed and you can go for an overview of SharePoint 2016.














    SharePoint 2016 IT Preview: Installation Prerequisites

    SharePoint 2016 is out for IT Preview and can be downloaded at

    http://www.microsoft.com/en-us/download/details.aspx?id=48712

    Here is the detail for the first step in installation, The Prerequisites.

    If you want to check what prerequisites are required to run the setup. just, run the Setup file and it will display all the required installations.


    Here are the links where all required software can be download.


    Windows Identity Foundation

    Microsoft Identity Extensions

    Microsoft Sync Framework Runtime v1.0 SP1 (x64)
    http://www.microsoft.com/en-us/download/details.aspx?id=17616

    Windows Server AppFabric 1.1
    http://www.microsoft.com/en-us/download/details.aspx?id=27115

    Cumulative Update Package 1 for Microsoft AppFabric 1.1 for Windows Server
    http://www.microsoft.com/en-us/download/details.aspx?id=29241

    WCF Data Services 5.6

    Microsoft Information Protection and Control Client (MSIPC)
    http://go.microsoft.com/fwlink/?LinkID=528177


    IIS 6 Management Compatibility Components & Web Server IIS Role
    Use "Add Roles and Features Wizard" to enable the features in Windows Server 2012.

    Download all the required tools and place them in the folder named "prerequisiteinstallerfiles"

    Start by clicking on prerequisiteinstaller.exe

    Setup will install all the prerequisites.
